About the Plugin

The HDRI Skylight Manager is a plugin for Blender that I made, providing a quick and easy way to place and align lights in relation to an HDRI environment.

Those familiar with Marmoset Toolbag are probably disappointed to see that Eevee lacks a way to position directional lights in relation to the current HDRI environment. Making setting up quick renders in Blender’s Eevee renderer a bit harder.

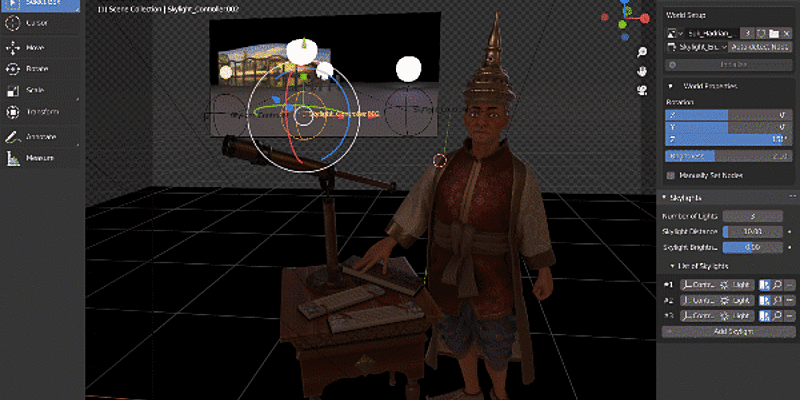

The Skylight Manager allows the user to quickly set up HDRI Environment maps and quickly add “skylights”, which are simply sun lights that automatically derive their positional, rotational, and colour values from a controller and reference image.

How it Works

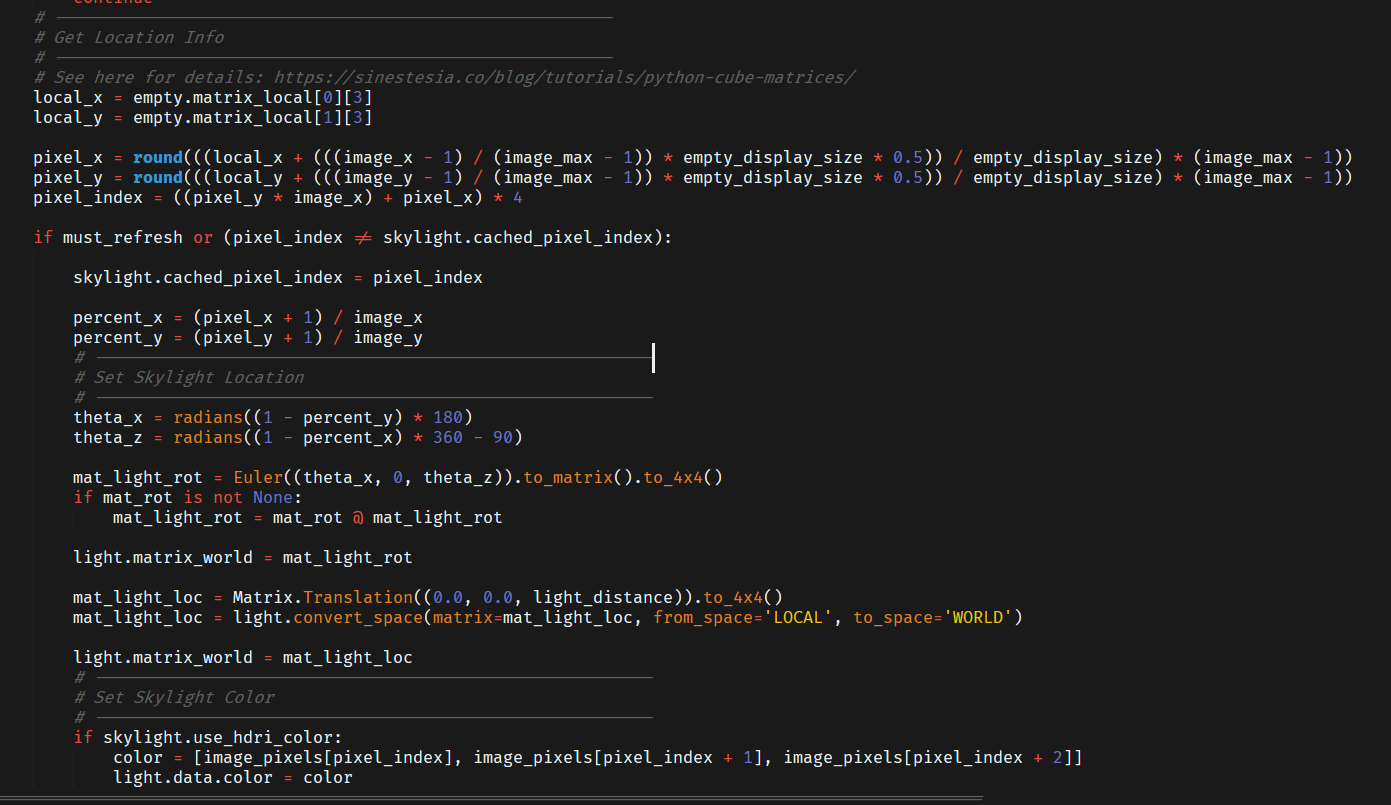

The plug-in creates a reference image plane with one or more empty objects attached to it. The empties are constrained to the surface of the plane, so we can easily convert their relative positions to XY coordinates. Then using some maths, we can convert the XY coordinates of the empties into yaw and pitch angles which we can feed to the corresponding sun lights.
